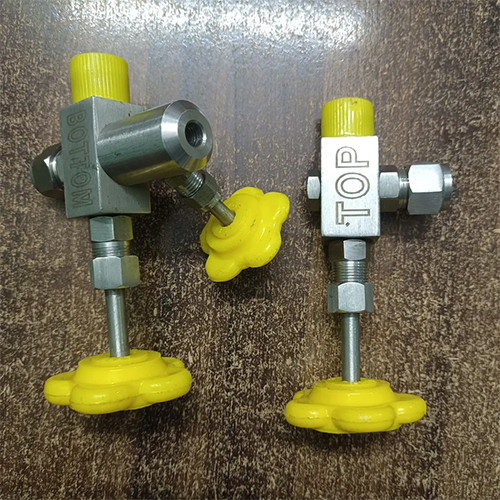

SS Gauge Glass Valve

SS Gauge Glass Valve Specification

Features
Corrosion resistant, Easy installation, Durable construction

Valve Size
Standard sizes available (1/2, 3/4, 1)

Material
Stainless Steel (SS 304/316)

Valve Type
Screwed/Flanged End Gauge Glass Valve

Control System
Hand operated

Connection Type
Threaded or Flange end

Sealing
PTFE/Gasket sealing

Structure
Straight type, robust body

Application
Industrial liquid level indication, boiler and tank monitoring

Type
Gauge Glass Valve

Power
Manual

Pressure
Up to 20 bar

Media
Water, Oil, Chemical liquids

Port Size
15mm to 25mm (1/2 to 1)

Temperature
Up to 200C

Disc
Stainless Steel Disc

Operating Mode
Manual Linear Operation

Inspection
100% pressure tested before dispatch

Surface Finish
Polished

Body Design
Bolted bonnet, leak-proof design

Working Fluid
Compatible with most industrial fluids and chemicals

Glass Compatibility
Transparent and Reflex gauge glass

End Connection
BSP/NPT threading or Flanged

Mounting Orientation
Vertical

Spare Parts Availability
Gaskets, valves, and glass tubes easily replaceable

About SS Gauge Glass Valve

Presenting our must-have SS Gauge Glass Valve, the optimum choice for industrial liquid level control at the lowest price. Take advantage of crackerjack reliability, featuring a polished, corrosion-resistant stainless steel (SS 304/316) body and a robust, straight construction. Unmatchable in performance, this valve offers manual linear operation, BSP/NPT threading or flanged ends, and both transparent and reflex glass compatibility. Easily replace spare parts, including gaskets and tubes. Each valve is 100% pressure tested, ensuring leak-proof function, with PTFE/gasket sealing for water, oil, or chemical liquids up to 200C and 20 bar pressure. Ready for export, fabrication, or wholesale supply across India.

SS Gauge Glass Valve-Ideal for Industrial Applications

The SS Gauge Glass Valve is specifically designed for vertical mounting in demanding settings like boilers, tanks, and process industries. Suitable for indicating liquid levels in diverse industrial fluids and chemicals, it supports manual hand-operated control for precision use. Key features include a straight, bolted bonnet, leak-proof design, and easy installation, making it a preferred choice for robust, durable, and corrosion-resistant liquid level monitoring.

Export, Delivery, and Availability: Stock Ready for Quick Dispatch

We export and supply SS Gauge Glass Valves worldwide, especially to markets in Asia, Africa, and Europe. Stock is ready and products are shipped promptly, typically within 5-7 working days after order confirmation and quotation acceptance. Our supply ability ensures you always get standard sizes on demand, with competitive pricing offered to fabricators, wholesalers, and retailers. Connect for bulk or custom quotation requests.

FAQ's of SS Gauge Glass Valve:

Q: How does the SS Gauge Glass Valve ensure leak-proof operation?

A: The valve features a robust, bolted bonnet design along with PTFE/Gasket sealing, ensuring a secure, leak-proof seal even under demanding pressure and temperature conditions.

Q: What type of fluids is this valve compatible with?

A: Our SS Gauge Glass Valve is suitable for water, oil, and chemical liquids, making it ideal for various industrial applications requiring accurate level monitoring.

Q: Where can the SS Gauge Glass Valve be installed?

A: This valve is designed for vertical mounting and can be installed on boilers, storage tanks, and other industrial vessels where liquid level indication is needed.

Q: What is the process for replacing spare parts?

A: Spare parts such as gaskets, valves, and glass tubes are easily replaceable. The user can simply unbolt the bonnet and swap out the worn components, ensuring minimal downtime.

Q: What sizes and end connections are available?

A: Standard sizes include 1/2, 3/4, and 1 inch, with both BSP/NPT threaded or flanged end connections available to fit diverse installation requirements.

Q: How quickly can the SS Gauge Glass Valve be shipped after placing an order?

A: With stock ready, orders are typically shipped within 5-7 working days upon confirmation and acceptance of the quotation, ensuring prompt delivery.
