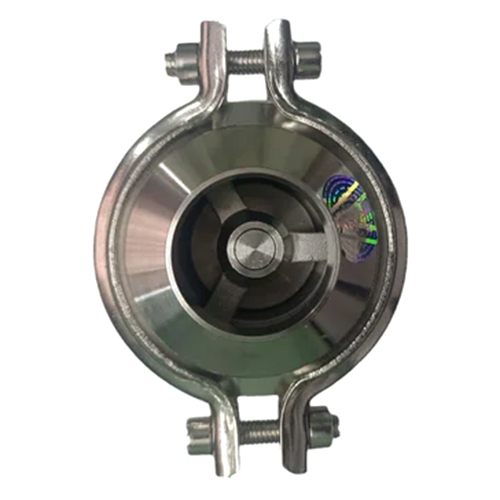

SS Dairy Tc End Nrv Valves

SS Dairy Tc End Nrv Valves Specification

Valve Type
Non-return Valve

Connection Type
Tri-Clamp (TC) end

Control System
Manual, self-acting

Valve Size
DN25 to DN100

Features
Hygienic design, easy to clean, corrosion resistance, CIP/SIP compatible

Material
Stainless Steel 304/316

Sealing
EPDM/Silicone/Viton/PTFE

Application
Dairy industry, Food & Beverage Processing, Pharmaceutical, Chemical Industries

Structure
Non-return valve with single disc swing type

Type
TC (Tri-Clamp) End NRV

Power
Manual

Pressure
Max 10 Bar

Media
Liquids, Dairy Products, Semi-viscous Fluids

Port Size
1 to 4 (25mm to 102mm)

Temperature
Up to 180C

Disc
SS 304/316, Machined finish

Pin
Stainless steel, integrated with disc

Mounting Orientation
Vertical/Horizontal

Leakage
Bubble-tight sealing

Opening Pressure
0.3 to 0.5 Bar

Inspection Port
Available on request

Weight
Variable, depends on size

End Connection
TC Clamp

Standards
3A, SMS, DIN, ISO

Body Finish
Mirror polished inside and outside

Maintenance
Tool-free assembly/disassembly

About SS Dairy Tc End Nrv Valves

Discover the hot deal on SS Dairy TC End NRV Valves-top-rated by industry experts and acclaimed for virtuoso performance in demanding applications. These world-class valves feature a spectacular mirror-polished finish, both inside and out, ensuring hygiene and corrosion resistance. Built to 3A, SMS, DIN, and ISO standards, they provide bubble-tight sealing and versatile mounting options. The tool-free assembly, CIP/SIP compatibility, and premium materials such as SS 304/316 guarantee durability and reliability. Ideal for dairy, food & beverage, pharmaceutical, and chemical industries where excellence is required.

Commercial Applications & Use Types of SS Dairy TC End NRV Valves

SS Dairy TC End NRV Valves are a preferred choice for hygienic liquid transfer in top-tier industries including dairy, food & beverage processing, pharmaceuticals, and chemicals. Their robust, corrosion-resistant design suits both commercial and industrial environments. Purpose-built for use with liquids, dairy products, and semi-viscous fluids, these valves provide smooth, reliable operation whether in continuous processing or batch applications. Their versatility allows for both vertical and horizontal installation, making them adaptable to diverse use cases.

Certifications, Sample Policy & Payment Terms

Each SS Dairy TC End NRV Valve is offered at a competitively marked sale price and comes with internationally recognized certifications like 3A, SMS, DIN, and ISO, ensuring premium quality. Samples are available upon request under a fair sample policy to support purchasing decisions. Flexible payment terms and prompt delivery options are provided, making transactions convenient and secure. The product's high standards and premium service solidify it as a go-to choice for leading manufacturers and suppliers.

FAQ's of SS Dairy Tc End Nrv Valves:

Q: How does the SS Dairy TC End NRV Valve ensure hygienic operation?

A: The valve features a mirror-polished surface and a tool-free, easy-to-clean design, making it ideal for industries with strict hygiene standards. It is also CIP/SIP compatible for seamless cleaning.

Q: What industries benefit most from using this non-return valve?

A: Dairy, food & beverage processing, pharmaceutical, and chemical industries especially benefit due to the valve's corrosion resistance, hygienic construction, and versatile liquid handling capabilities.

Q: Where can the SS Dairy TC End NRV Valve be mounted?

A: These valves can be mounted both vertically and horizontally, providing flexible installation options across various processing setups.

Q: What is the process for assembling or disassembling this valve?

A: The valve's tool-free assembly/disassembly feature allows for quick and easy maintenance, greatly reducing downtime and increasing operational efficiency.

Q: What specific certification standards do these valves meet?

A: SS Dairy TC End NRV Valves comply with global standards including 3A, SMS, DIN, and ISO, demonstrating their world-class quality and safety attributes.
