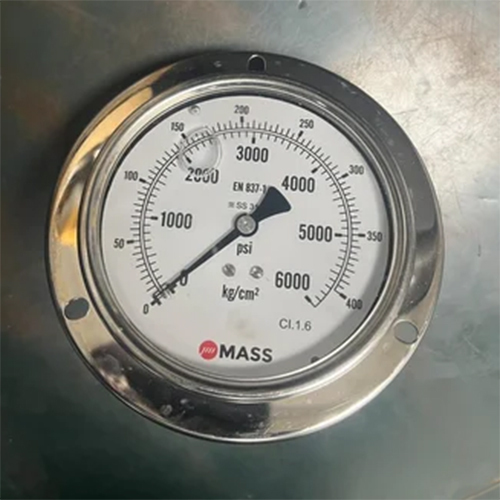

Pressure Gauge

Pressure Gauge Specification

Outer Size
100 mm

Display
Analog

Thread
1/2 BSP

Bourdon Tube
Stainless Steel

Sensor Type
Bourdon Tube

Seal Material
Buna-N

Grade
Industrial

Material
Stainless Steel Case & Bezel

Dial Material
Aluminum, white background with black marking

Pointer Material
Aluminum, black finish

Processing Type
Machined

Diameter
100 mm

Glass Size
100 mm

Mount Type
Bottom/Back Mount

Scale Range
0~7 kg/cm2

Accuracy
1.6% FSD

Finishing
Polished

Measure Pressure Of
Liquid, Gas, Steam

Accessories
Safety Blowout Disc, Mounting Bracket

Movement Material
Brass

Lens Type
Acrylic

Gasket
Neoprene

Case & Bezel Material
SS 304

Pressure Element
Phosphor Bronze for General Use, SS for Corrosive Media

Operating Temperature
-20°C to 60°C

Enclosure Protection
IP65

Mounting Type
Surface/Panel Mountable

Connection Location
Bottom/Center Back

About Pressure Gauge

Get your hands on a top-tier Pressure Gauge crafted as a paragon of industrial excellence. This immaculate device, built with heroic precision, features a sturdy stainless steel case and bezel, paired with a glass-clear acrylic lens. With a brass movement, phosphor bronze or SS pressure element, and a reliable Bourdon Tube sensor, this gauge is engineered to handle rigorous tasks - from liquids and gases to steam measurement. Deal includes polished finishing, weather-resistant IP65 protection, and versatile surface/panel mounting. Exported nationwide across India, it stands as the trusted choice of retailers, fabricators, and engineers alike.

Diverse Applications and Usage Surfaces

This Pressure Gauge is tailored for a multitude of applications, effortlessly suited for measuring liquids, gases, and steam in chemical plants, refineries, HVAC systems, and hydraulic setups. Its robust design enables secure mounting on panels or directly to surfaces. For optimal results, mount using the provided bracket and select the appropriate connection location (bottom or center back). Its adaptability ensures reliable performance across production floors, equipment panels, and control rooms, making it a must-have for numerous industries.

Packaging, Certifications, and Sample Outlay

Each Pressure Gauge is delivered in immaculate packaging, ensuring the device's integrity throughout transit and handover. The outlay includes well-cushioned units, safety seals, and all essential accessories such as mounting brackets and blowout discs. Certified to stringent industrial standards, our gauges come with compliance documentation upon request. Samples are available for evaluation, allowing potential buyers to assess quality before committing. This guarantees peace of mind and confidence with every purchase, reinforcing dealer and customer trust alike.

FAQ's of Pressure Gauge:

Q: How does the Pressure Gauge ensure durability in harsh environments?

A: The Pressure Gauge features an SS304 case and bezel, acrylic lens, IP65 enclosure protection, and a selection of corrosion-resistant materials, providing heroic durability in demanding industrial settings.

Q: What connection locations are available for this gauge?

A: You can choose between bottom mount and center back mount, allowing flexible installation according to your system layout and application needs.

Q: When is it advisable to select an SS pressure element instead of phosphor bronze?

A: Select the SS pressure element when measuring corrosive media to maximize resistance and accuracy, while phosphor bronze is ideal for general and less aggressive applications.

Q: Where can this Pressure Gauge be installed in an industrial setup?

A: Its versatile design supports both surface and panel mounting, fitting seamlessly into equipment panels, control rooms, pipelines, and machinery.

Q: What is the benefit of the safety blowout disc accessory included?

A: The safety blowout disc helps prevent accidents by safely venting excessive pressure, providing an additional layer of protection and reinforcing operational safety.

Q: How does the display improve pressure reading precision?

A: The analog display, featuring a white aluminum dial with black markings and a black aluminum pointer, ensures high visibility and A1.6% FSD accuracy for reliable readings.
